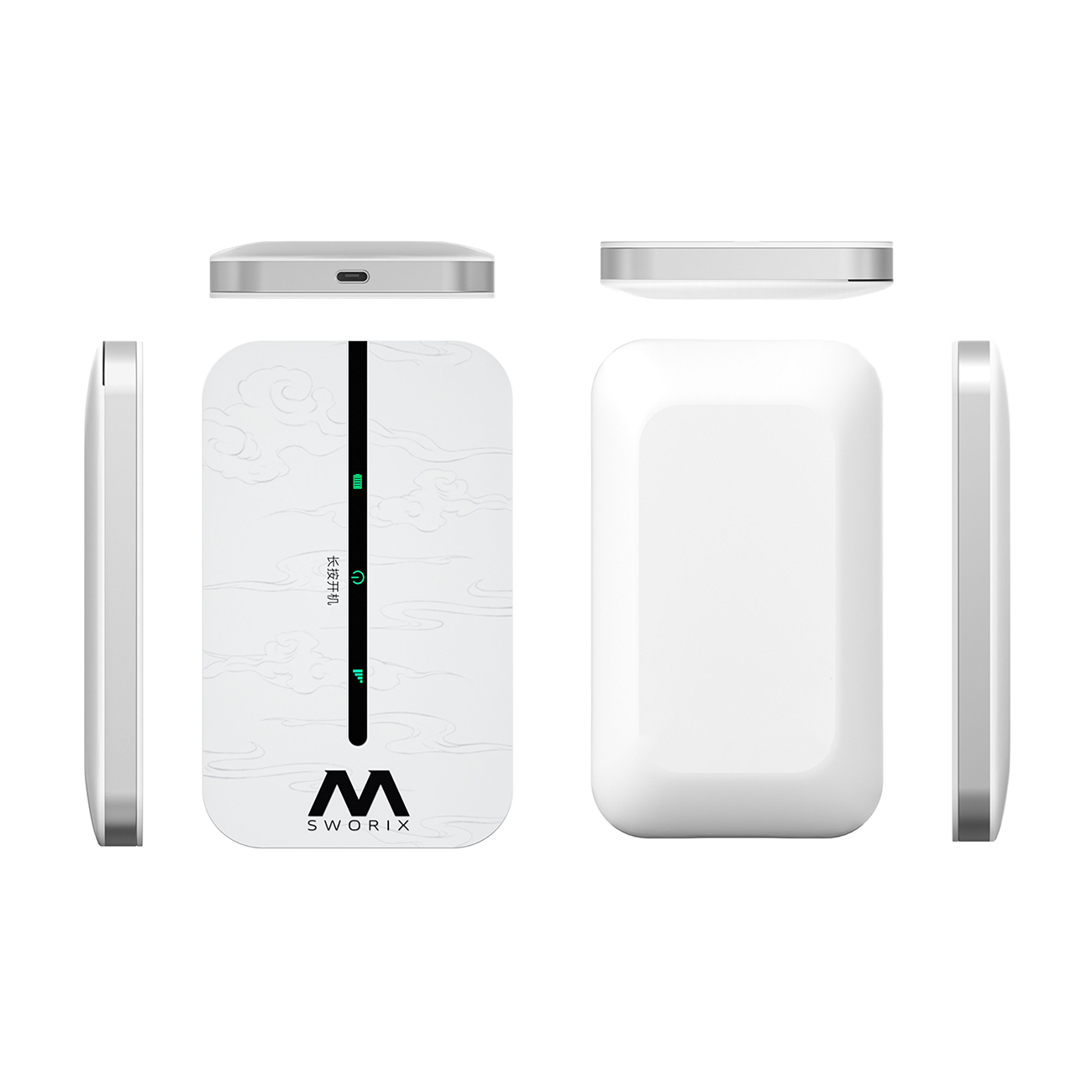

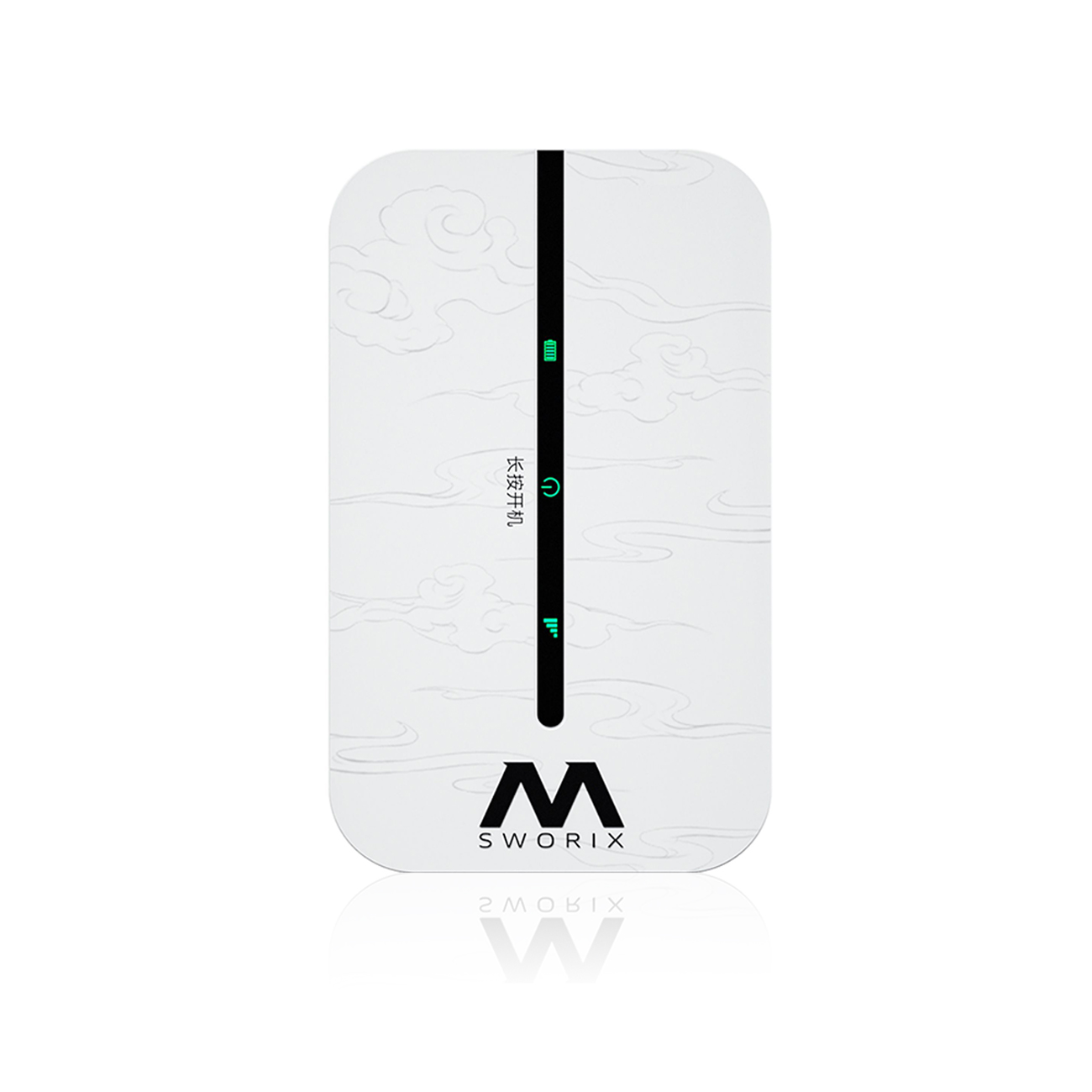

4G MDM9X07 Mobile Router 3000mAh

The M808 is a simple-looking LTE wireless pocket WIFI terminal that provides excellent wireless access performance and comprehensive routing capabilities, bringing wireless broadband data services to end users.

Online inquiry

Content details

M808 LTE Cat.4 Mobile WiFi：

The M808 is a simple-looking LTE wireless pocket WIFI terminal that provides excellent wireless access performance and comprehensive routing capabilities, bringing

wireless broadband data services to end users.

It can transmit LAN data through high-speed LTE wide area network, allowing mobile phones, laptops, tablets and other smart devices to access the Internet through the

device at the same time。

Item	Description
Model	SW-M808
Chipset	MDM9X07(ASR1803)
Power supply	Type-C 5V/1A
4G frequency band	LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 Support Asian/EC/EM/NA/JP/GL version, etc
Speed	LTE-FDD: Max 150 Mbps（DL）Max 50 Mbps（UL） LTE-TDD: Max 130 Mbps（DL）Max 35 Mbps（UL） WCDMA: Max 42 Mbps（DL）Max 5.76 Mbps（UL）
WiFi protocol	IEEE 802.11 B/G/N/AX
WiFi band	2.4G, Max 300Mbps
Battery	Li-on battery 3000mAh
Working time	Around 8-10 hours
Max users	8-10 users
SIM card slot	eSIM3 or Nano SIM1（choose one）
Reset	Long press for 5 seconds to restore factory settings
Indicator light	Power1；Battery1；4G Link*1
Operating temperature	-10℃~+45℃
Size	1066316mm；around 100g
