4G Cat.4 Router Board with 4LAN

MTK7628+MDM9X07, Stable performance, OpenWRT, 4 LAN port and WiFi6

Online inquiry

Content details

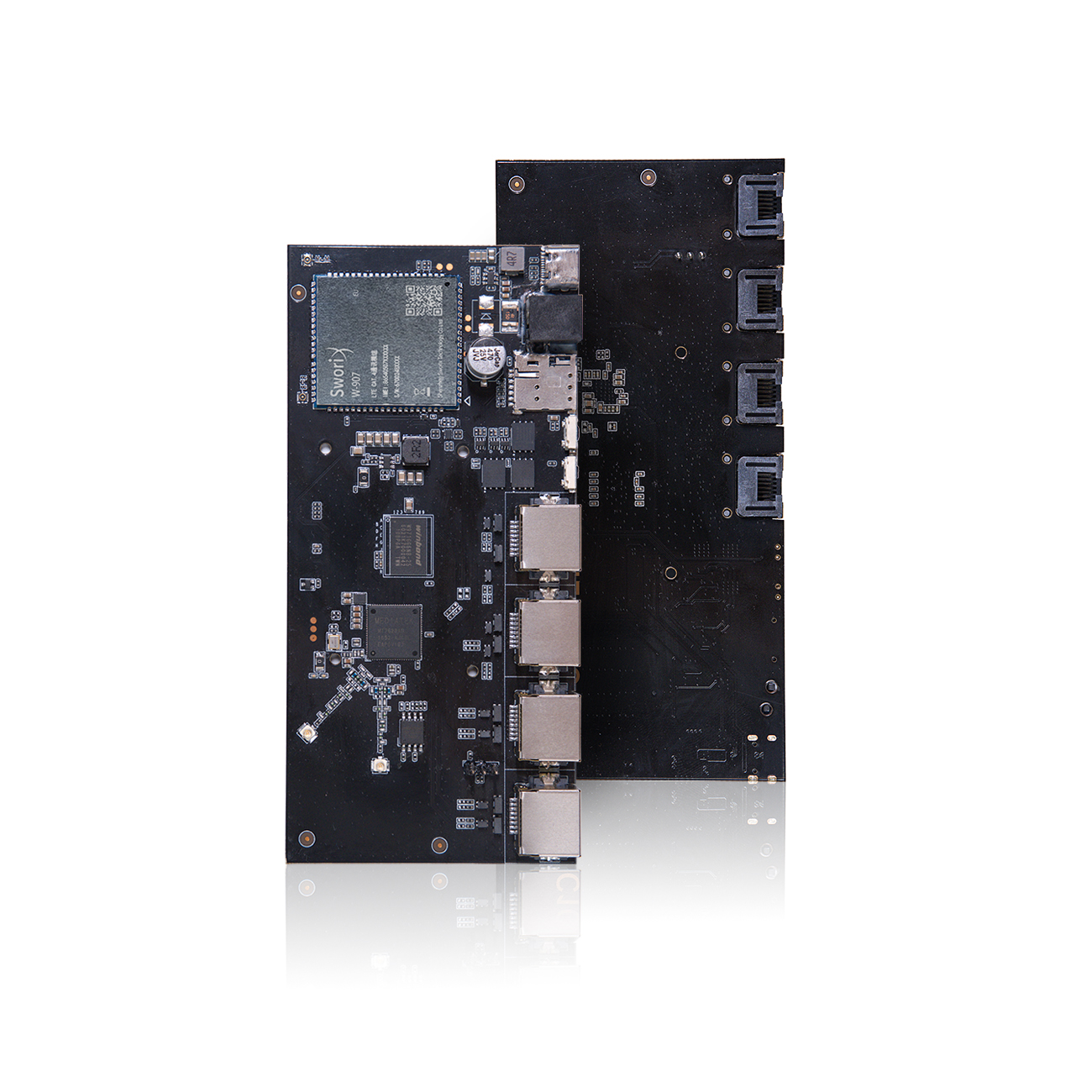

SW-C10 4 LAN CPE Board

SW-C10 is a high-performance four-port CPE motherboard that integrates LTE Cat.4 module and MTK7628 chip, making the product performance more efficient and stable.

Its four network port design and 2.4G WiFi6 technology can meet more application scenarios.

Item	Description
Model	SW-C10
Chipset	MDM9X07+MTK7628
4G frequency band	LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 Support Asian/EU/EC/EM/NA/JP/GL version, etc
Speed	LTE-FDD: Max 150 Mbps（DL）Max 50 Mbps（UL） LTE-TDD: Max 130 Mbps（DL）Max 35 Mbps（UL） WCDMA: Max 42 Mbps（DL）Max 5.76 Mbps（UL）
WiFi protocol	IEEE 802.11 B/G/N/AX
WiFi band	2.4G, Max 300Mbps
SIM card slot	Nano SIM*1；(eSIM optional)
Max users	8-10 users
Power supply	DC 12V/1A or Type-C 5V/2A
Antenna	IPEX 1st, 4G Main1，4G DIV1，WiFi*2
WPS	Support
Reset	Long press for 5 seconds to restore factory settings
Indicator light	WiFi1；4G Link1；LAN*1
Operating temperature	-10℃~+55℃
Size	1356512mm
