5MP
Your location : Home > Product > IP Cameras > 5MP

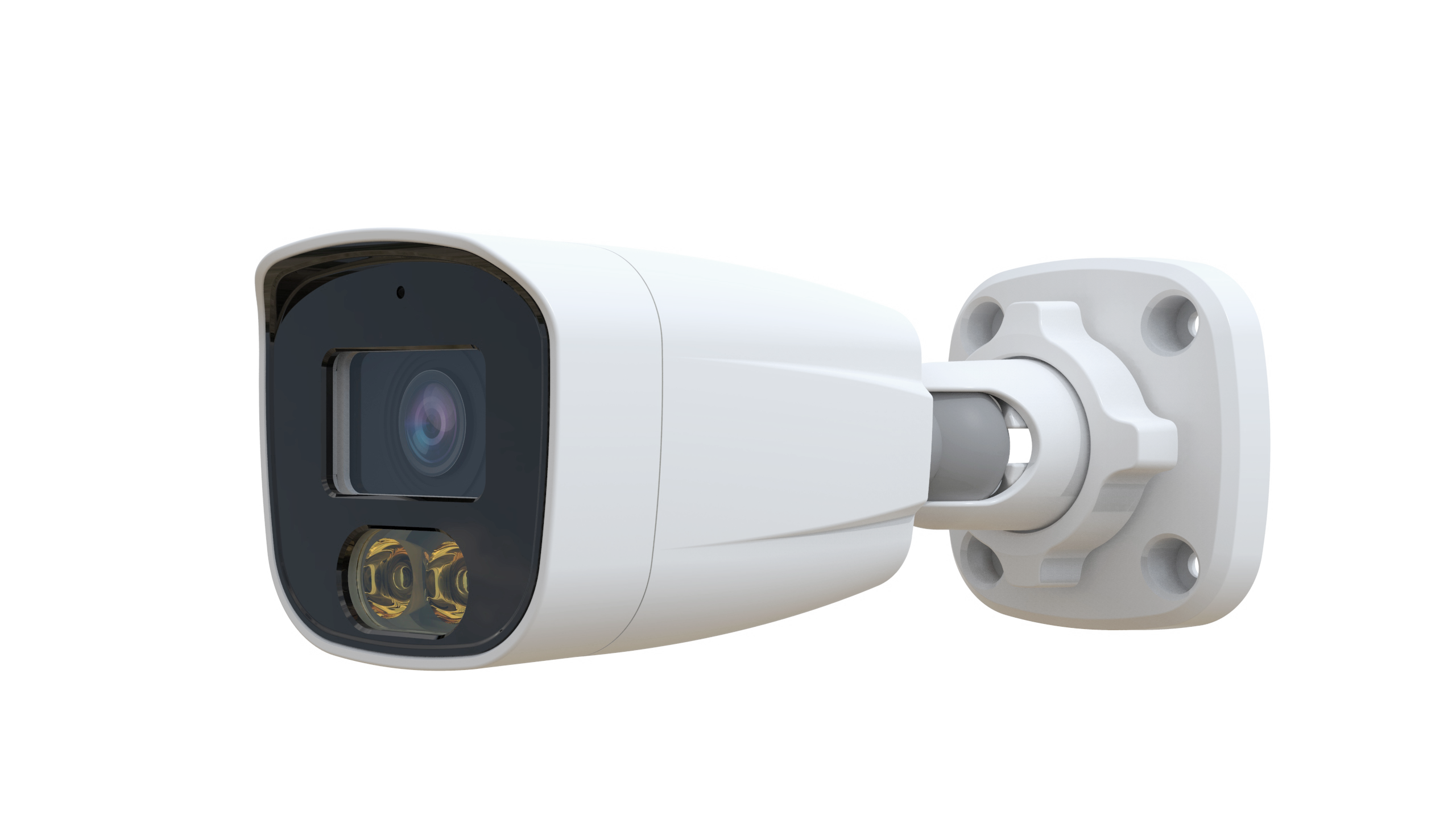

SW-NBM5-8305

5MP H.265 POE IPC, 1/3" CMOS, supports 5.0MP (2592*1944) 25fps monitoring, Support DC12V/ POE (choice), easy to install, Support Audio in/out, Support warm light and regular IR LED
Online inquiry
  • Content details


Product Features



E 5MP H.265 POE IPC.

E 1/2.7" CMOS, supports 5.0MP (2592*1944) 25fps monitoring

E Support DC12V/ POE (choice), easy to install

E Support Audio in/out, reset port

E Support warm light day night full color

E Support Smart LED, automatic adjust the brightness

E Support mobile phone remote monitoring

E Supports ONVIF protocol access

E Applicable to the Financial Departments, Telecommunications, Government, schools, airports, factory, Hotels, Museum, Public transportation and other places





Parameter
  Classification

Parameter   Name

Parameter   Value

Camera

Image   Sensor

1/2.7” CMOS

Resolution

2592*1944

Minimum   illumination

3Lux   @ (F2.0, AGC ON)

Lens

3.6mm

LEDs

2PCS   3500K soft warm light or IR LED

SNR

≥40Db   (AGC OFF)

IR   distance

20m

Video   Frame Rate

5MP@25fps

Video

compression

Format

H265

Image   output (Main stream)

2592*1944/25fps

Image   output (Sub-stream)

704*576/25fps

Interface

Network   interface

1   RJ45 10/100M Ethernet interface

Audio   intercom input

1ch   audio input

Audio   output

1ch

IO   interface

1ch   reset

Protocol

Protocol

TCP/IP/UDP/RTSP/HTTP/DNS/   DHCP/NTP

ONVIF

Standard ONVIF

Others

Power   supply

DC12V/   POE Build-in

Power   consumption

3W(MAX)

Working   temperature

 -20~+55

Working   humidity

≤95%

Protection   class

IP66
