LTE Cat.4 MDM9X07 MiFi Board

Mini size MiFi board, eSIM/Nano sim optional, built in firmware, low cost solution
Online inquiry
  • Content details

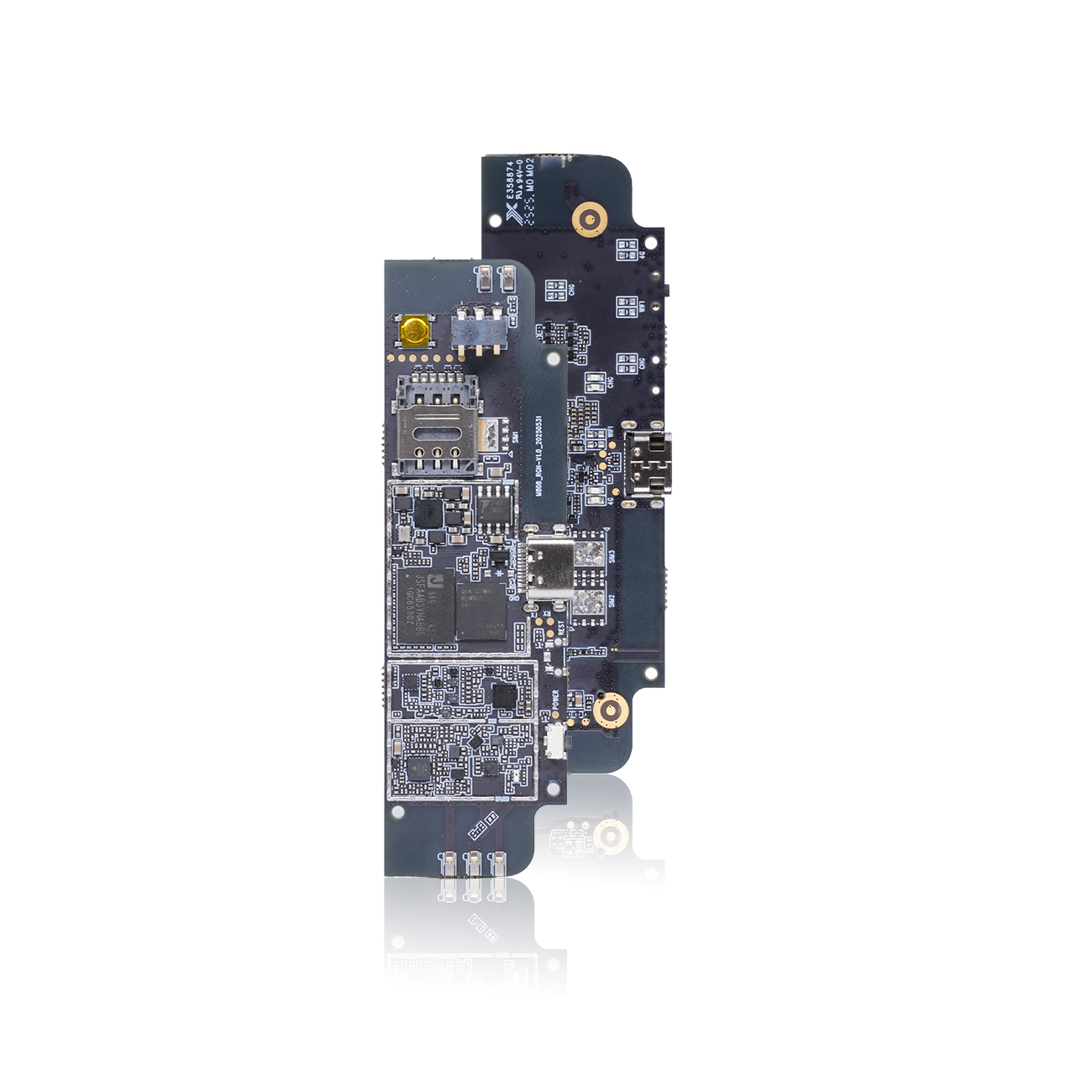

M808 LTE Cat.4 MiFi Board：


The MiFi half-board adopts COB technology, integrating LTE Cat.4 chipset and WiFi6 chip into one piece on the mainboard, which reduces production costs；


Built-in firmware, plug and play without development, supports eSIM (3 pieces) or physical card slot optional, supports battery-free charging, supports USB Internet access, etc。


  Item   Description
  Model   SW-M808
  Chipset
   MDM9X07(ASR1803)
  Power Supply   Type-C 5V/1A
  4G band

   LTE-FDD: B1/B3/B5/B7/B8/B20/B28

   LTE-TDD: B38/B39/B40/B41

   WCDMA: B1/B5/B8

   Support Asian/EU/EC/EM/NA/JP/GL version, etc

  Speed

  LTE-FDD: Max 150 Mbps（DL）Max 50 Mbps（UL）

  LTE-TDD: Max 130 Mbps（DL）Max 35 Mbps（UL）

  WCDMA: Max 42 Mbps（DL）Max 5.76 Mbps（UL）

  WiFi protocol  IEEE 802.11 B/G/N/AX
  WiFi speed  2.4G, Max 300Mbps
  Max users  8-10 users
  SIM Card Slot

  eSIM*3 Or Nano SIM*1（Choose one）

  Reset
  Long press for 5 seconds to restore factory settings
  Indicator light  Power supply*1; Power*1; 4G Link*1
  Operating temperature  -10℃~+45℃
  Size  87*30*5mm
