4G routers
Your location : Home > Product > 4G routers

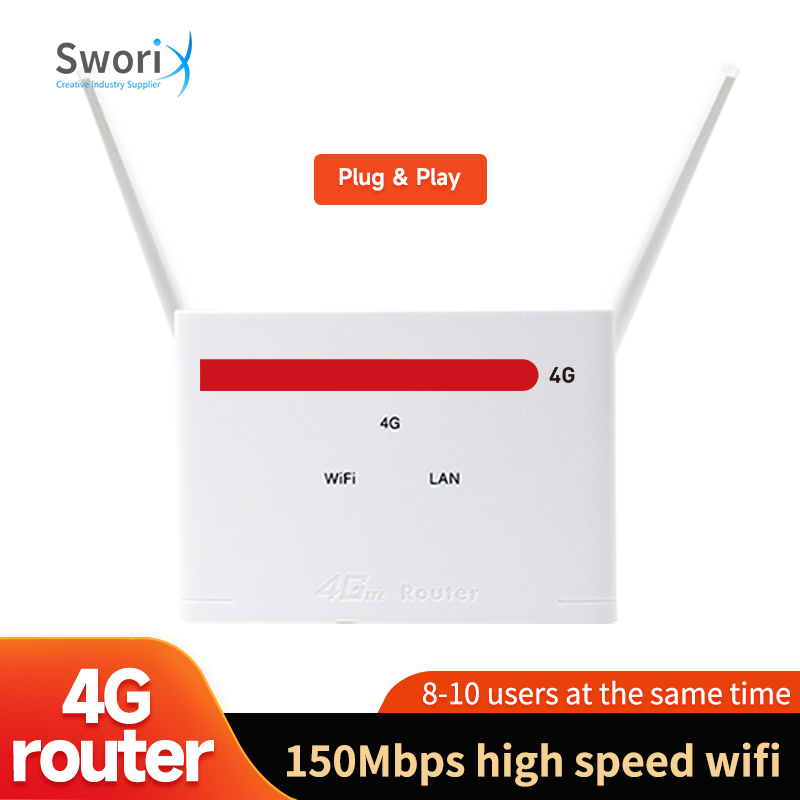

SW-4G-R109E

4G router, maxim for 8 users, external antenna, Compatible with WCDMA,FDD-LTE,TDD-LTE
Online inquiry
  • Content details


CategoryFeature &   SpecificationDescription
Basical InformationModel   NameR109E
Form FactorCPE
Dimension150*101*35mm   or 150*101*40mm with External Antenna
WeightAbout   200g
ColorWhite
Air InterfaceTechnical   StandardCompatible with   WCDMA,   FDD-LTETDD-LTE Default   802.11b/g/n
FrequencyLTE:B1/3/5/7/8/20/38/40/41   WCDMA:B1/5/8
WIFI2.4G,   802.11 b/g/n
PerformanceMaximum   Data ThroughputLTE CAT 4
    FDD-LTE(DL/UL) 150Mbps/50Mbps HSPA+ (DL/UL)    21/5.76Mbps
HardwareReceive   DiversitySupport   Receive Diversity
MIMOSupport   DL 2x2 MIMO
BB ChipsetASR   1803
WiFi ChipsetASR   5803
WiFi    Users8
power consumption<10W
Power VoltageDC12V/800mA   or DC5V/1000mA
USIM/SIM4FF   Nano SIM card
    support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card   and 1.8V SIM card;internal
LEDSYSTEM/WiFi   Indication LED LTE/Internet   Status Interface Status LEDETH/Signal Strength LED
Antennainternal   WIFI antenna;2 internal LTE antenna; 2 external antenna for optional
ButtonsReset/WPS
Ethernet1LAN,   10BaseT/100Base/ automatic adaptive port
ResetPinhole
ESDContact±8KVAir±10KV
SoftwareSW   UpdateTR069   & FOTA(customized) & Local
WIFI ModeAP/STATION   mode
WIFI SecurityOPEN   & WPA-PSK& WPA2-PSK
SMS YES
IPv4Support   IPv4
IPv6Support   IPv6
Data StatisticsSupport
SIM LockSupport
HTTPSupport
DMZSupport
EnvironmentOperating   TemperatureNormal:-10°C   to +65°C;
Storage Temperature-20°   C  to +85° C
Humidity5%~   95%
