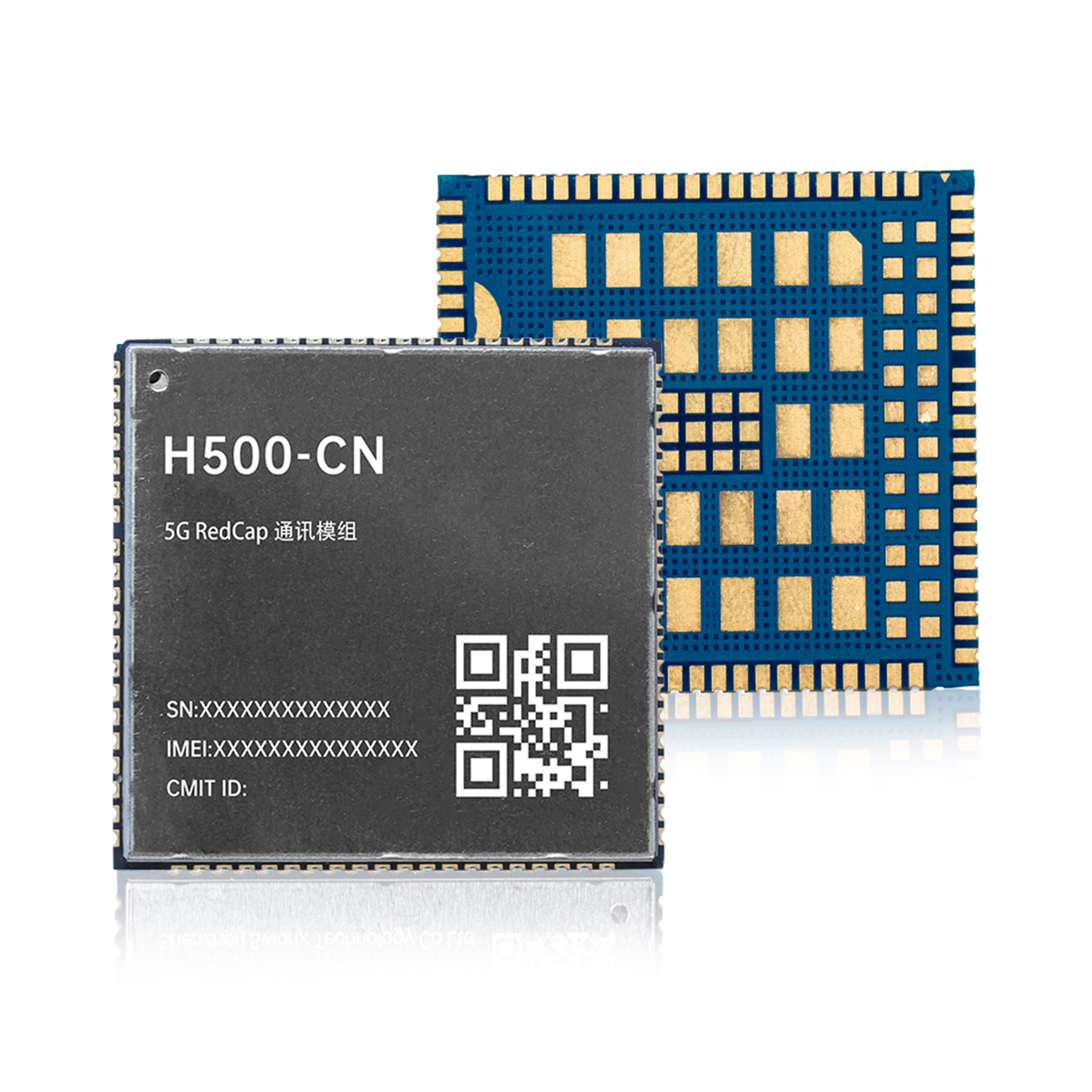

H-500 5G HiSilicon Redcap Module Description：
The H-500 Lightweight Edition is a 5G RedCap module in an LCC package. Based on 3GPP R17 RedCap technology,
it supports 5G SA and LTE network standards, with theoretical peak rates of up to 226Mbps (DL) and 120Mbps (UL), respectively.
The H-500 Lite Edition features a rich set of built-in network protocols, integrates multiple standard interfaces such as USB 2.0,
PCM, and UART, and supports a wide range of drivers and software functions.
It can be widely used in car boxes, tablets, Mi-Fi, CPE, dongles, home IPCs, and more.
| Item | Description |
| Size | （32±0.1）x（29±0.1）x（2.4±0.2）mm |
| Packing | LCC package, SMD mounting |
| Operating voltage | 3.3V - 4.4V Typical voltage 3.8V |
Data
| 5G NR | DL 226Mbps/UL 120Mbps |
| LTE FDD | DL 200Mbps/UL 100Mbps |
| LTE TDD | DL 150Mbps/UL 20Mbps |
| Frequency | 5G NR | N1/N3/N5/N8/N28A/N41/N78 |
| LTE FDD | FDD B1/3/5/8 |
| LTE TDD | TDD B34/38/39/40/41 |
| Application Interface | USB2.0 | Support |
| PCM/I2S | Support |
| PCMII | Support |
| I2C | Support |
| PCIe | Support |
| SDIO | Support |
| UART | Support |
| SPI | Support |
USIM
| Support |
| Network status indication | Support |
| ADC | Support |
| Antenna | 2 Antennas |
| Software Features | •DTMF •FOTA •AT Command |
| Driver | •Support Android/Linux (kernel version 2.6.29 and above) •Support Android 8, 9, 10, 11 and above •Support Win10 |
| Temperature range | Normal operating temperature -30℃ to + 75℃ Extreme operating temperature -40℃ to + 85℃ |
| Storage temperature | -40℃ to + 85℃ |
| Storage humidity | RH5%～RH95% |
