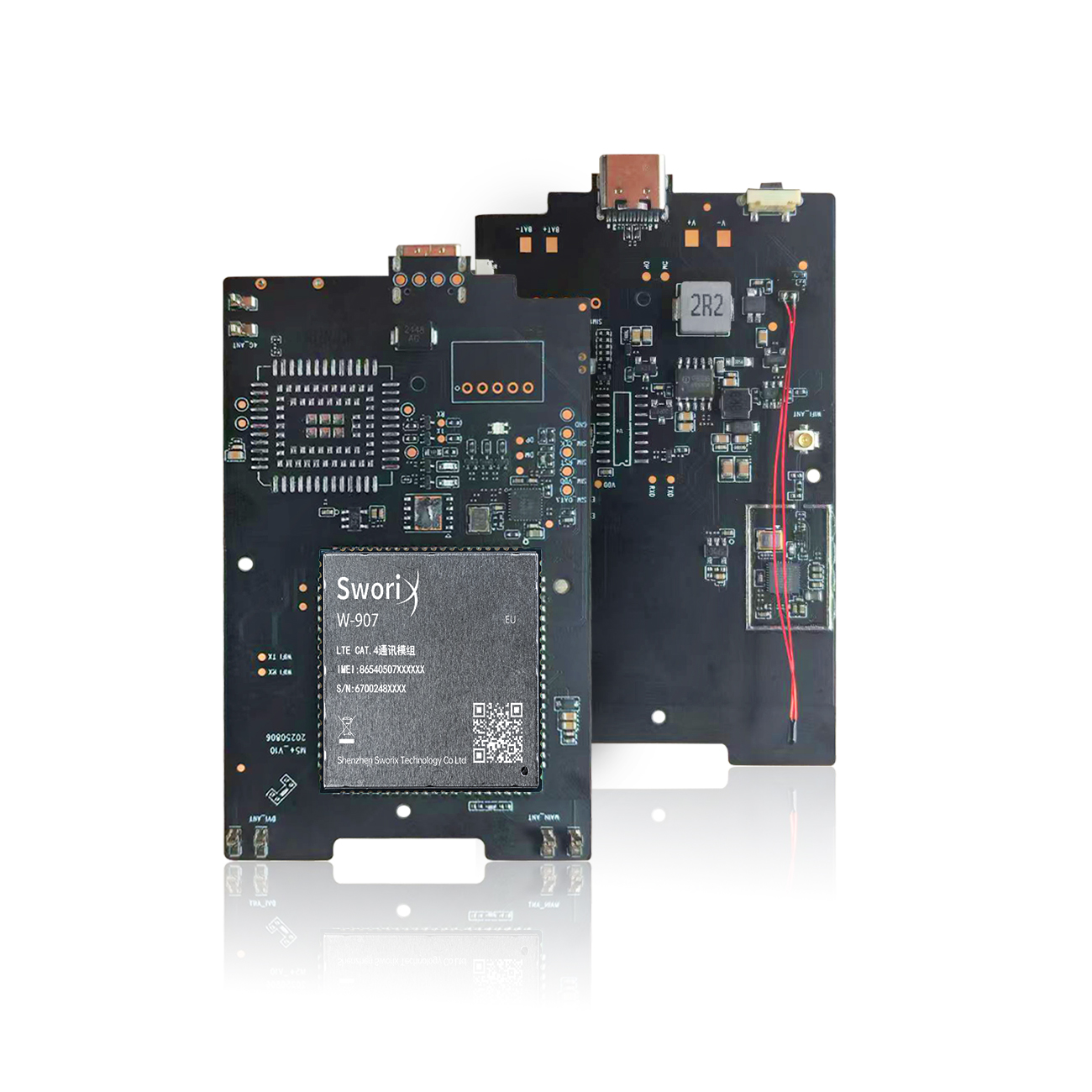

SW-X-M05 Powerbank MiFi Board
SW-X-M05 is a portable MiFi motherboard with integrated LTE Cat.4 module and 2.4G WiFi6 chip. It can be connected to an external 5000mAh lithium battery and supports one physical card slot or three eSIM electronic cards.
Its unique and innovative design adds cloud SIM as an option, making the product have a wider range of application scenarios.
| Item | Description |
| Model | SW-X-M05 |
Chipset
| MDM9X07（or ASR1803S） |
4G frequency band
| LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 Support Asian/EU/EC/EM/NA/JP/GL version, etc |
| Speed | LTE-FDD: Max 150 Mbps（DL）Max 50 Mbps（UL） LTE-TDD: Max 130 Mbps（DL）Max 35 Mbps（UL） WCDMA: Max 42 Mbps（DL）Max 5.76 Mbps（UL） |
| WiFi protocol | IEEE 802.11 B/G/N/AX |
| WiFi band | 2.4G, Max 300Mbps |
| SIM card slot | Nano SIM*1；(eSIM optional) |
| Cloud SIM | Reserved
|
| Max users | 8-10 users |
| Output | Support external 5000mAh lithium battery, output 5V/2A |
| Input | Type-C, Input 5V/2A |
| Reset | 4G Main*1，4G DIV*1，WiFi*1 |
Reset
| Long press for 5 seconds to restore factory settings |
| Indicator light | WiFi*1；(Supports battery display screen) |
| Button | Power button to enable Wi-Fi hotspot |
| Operating temperature | -10℃~+45℃ |
| Size | 82*50*6mm |
