SW_CX_AP38 Mini 4G Board with LAN/WiFi/TTL

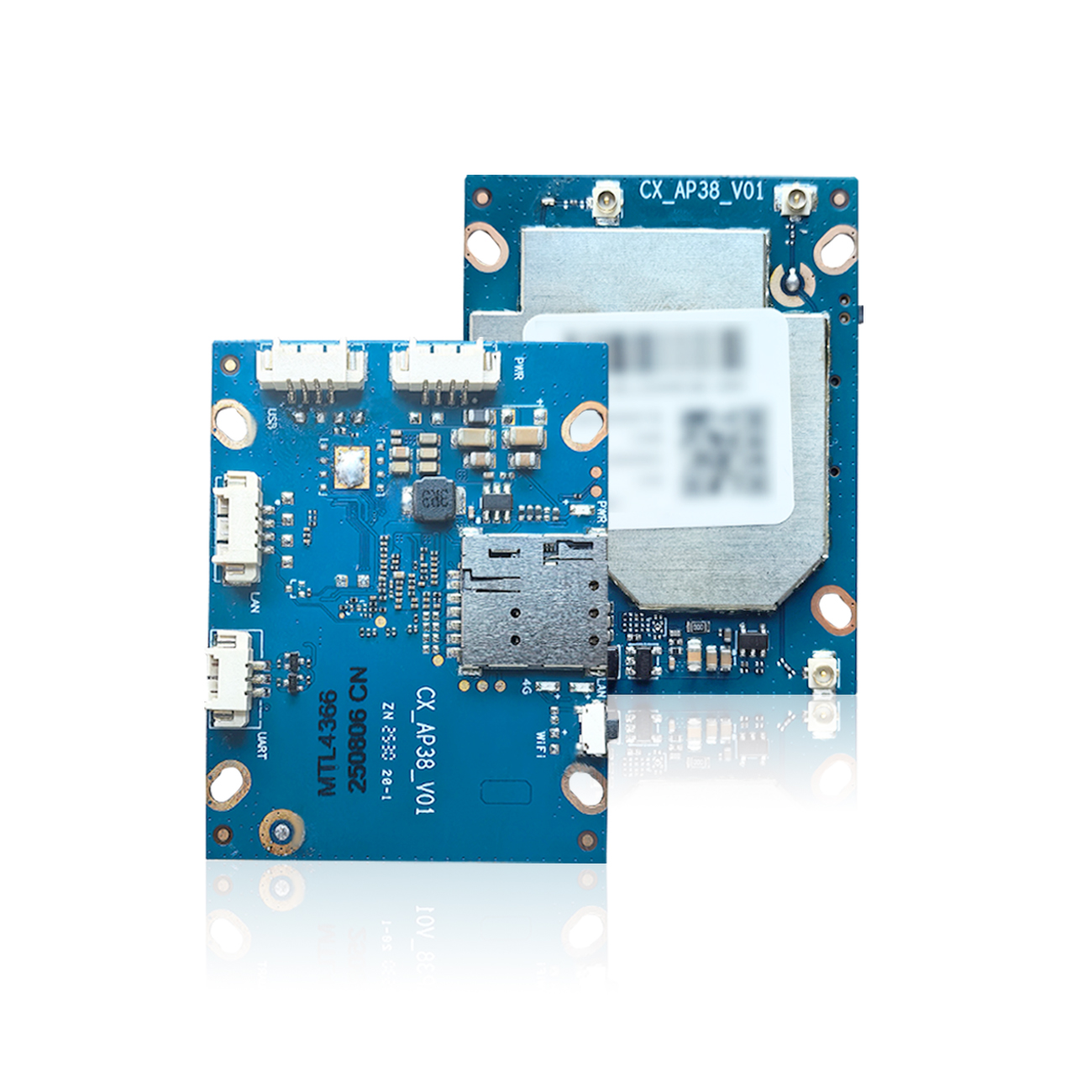

SW_CX_AP38 LTE CAT4 module is a miniature wireless communication gateway suitable for converting wired network ports to 4G wireless. It is ideal for locations where network cabling is inconvenient or wireless is required.As long as the local terminal or device has a standard network port or serial port interface, long-distance communication can be achieved.
Provides USB interface/1 TTL serial port, 1 10/100Mbps Ethernet port, 2.4G WiFi, standard 49*38mm small size，
34*34mm positioning holes, more product functions. Support LTE 4G FDD multi-mode multi-band access and TDD band. Built-in firmware, plug and play.
| Item | Description |
| Model | SW-CX-AP38 |
Chipset
| ASR1803S LTE Cat.4 |
| Power supply | PH1.25mm 4pin socket, DC wide voltage 9~16V，@DC12V |
| Power consumption | Normal value <2W; peak value 400mA@12V |
4G frequency band
| LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 Support Asian/EU/EC/EM/NA/JP/GL version, etc |
| Speed | LTE-FDD: Max 150 Mbps（DL）Max 50 Mbps（UL） LTE-TDD: Max 130 Mbps（DL）Max 35 Mbps（UL） WCDMA: Max 42 Mbps（DL）Max 5.76 Mbps（UL） |
| WiFi protocol | IEEE 802.11 B/G/N/AX |
| WiFi band | 2.4G, Max 300Mbps |
| SIM card slot | Nano SIM*1；(eSIM optional) |
| Max users | 8-10 users
|

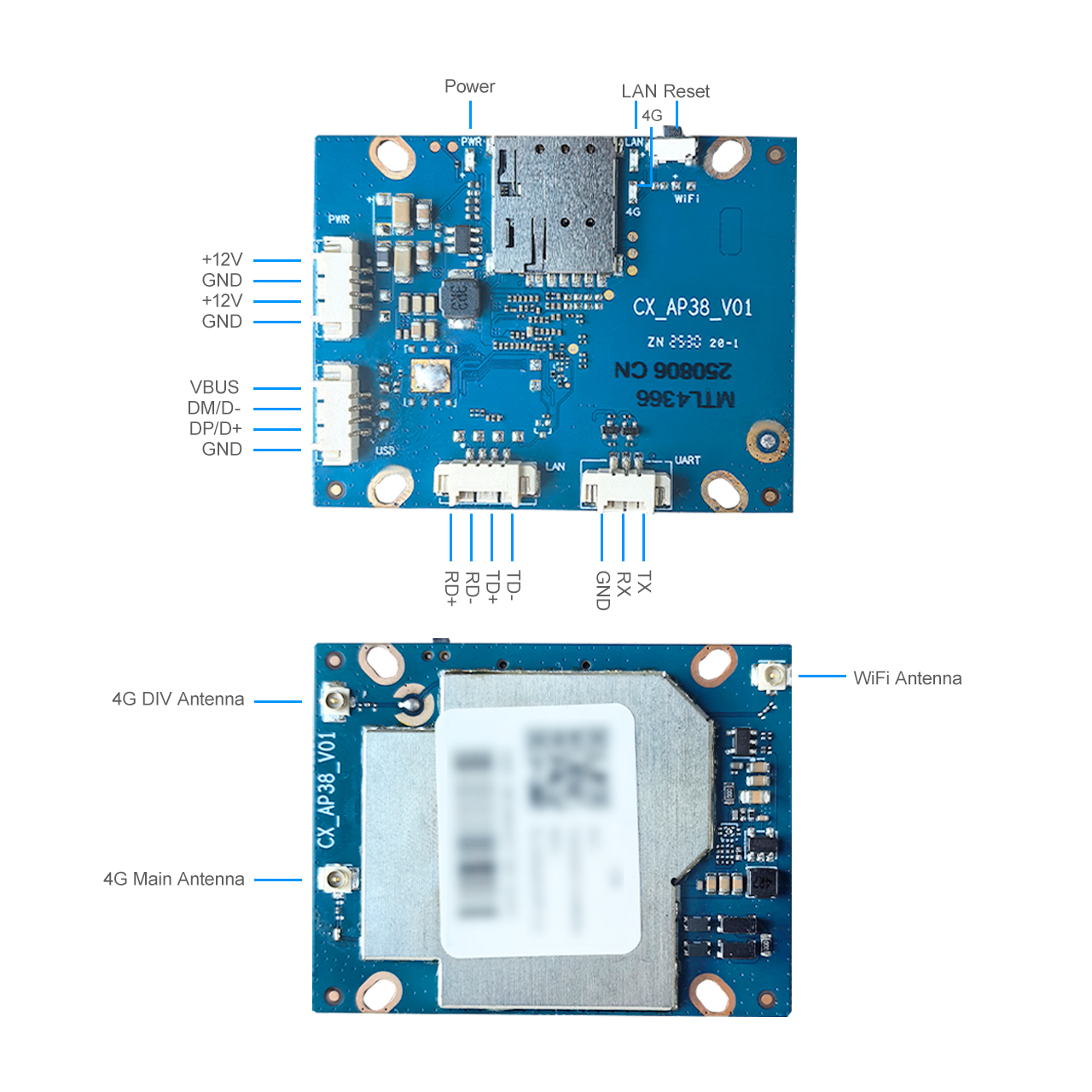

| Ethernet port | PH1.25mm 4pin socket, 1*10/100Mbps adaptive network port |
| TTL serial port | PH1.25mm 3pin socket, (RX, TX, GND), supports transparent transmission |
| USB | PH1.25mm 4pin socket, used for debugging/Internet access/upgrade/AT, etc. |
| Antenna | IPEX 1st generation port, 4G Main*1, 4G DIV*1, WiFi*1 |
Reset
| Long press for 5 seconds to restore factory settings |
| Indicator light | Power*1；LAN*1；4G Link*1 |
| Operating temperature | -10℃~+65℃ |
| Size | 49*38*7mm |
| Position hole | 34*34mm |
