LTE Cat.4 CPE Router Board

DC/Type-C power supply, eSIM/Nano SIM optional, global frequency band

Online inquiry

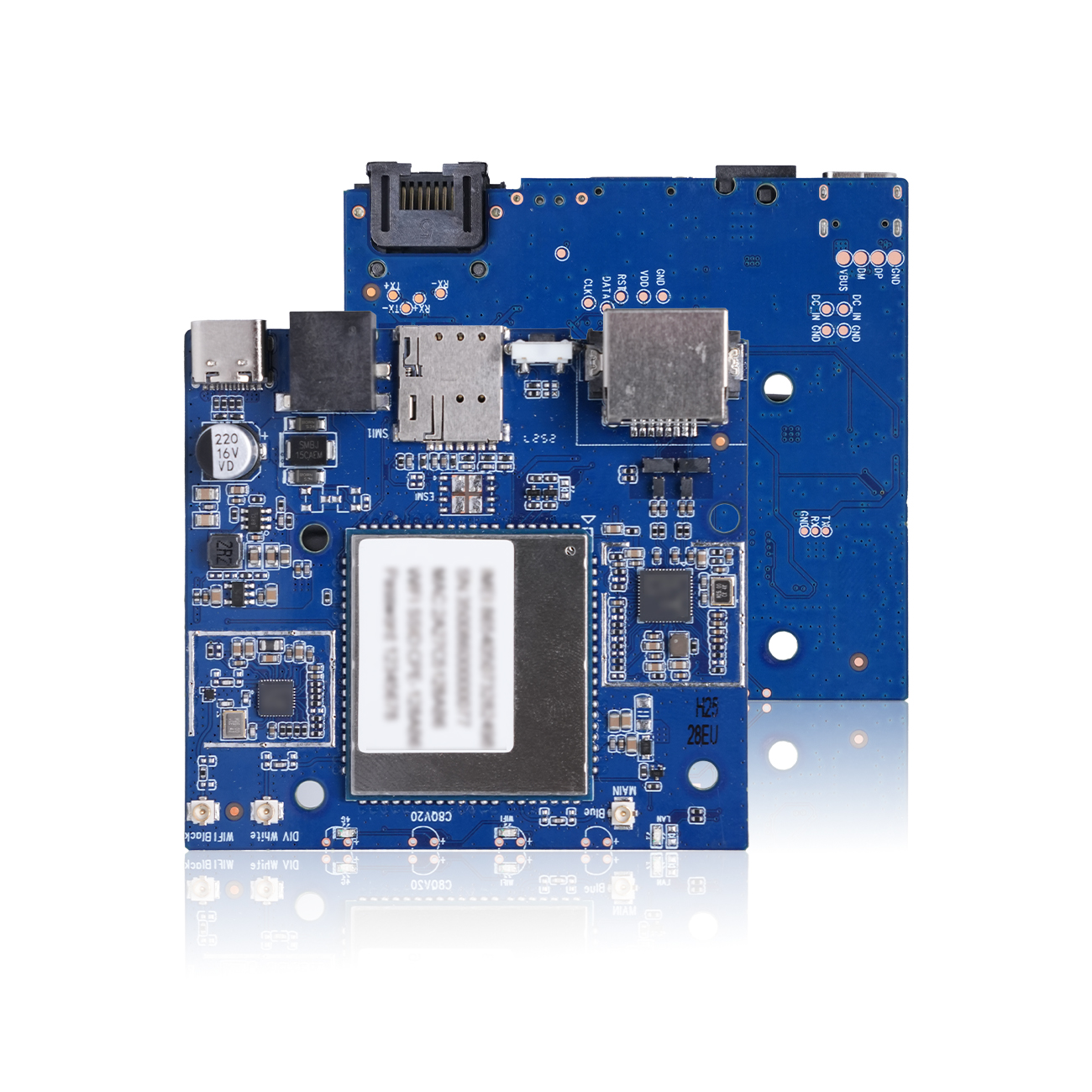

SW-C8 One LAN CPE Board with WiFi：

The motherboard integrates the LTE Cat.4 communication module and WiFi6 chip, with built-in firmware, plug-and-play and no development required.

Support DC or Type-C power supply, support multi-region version, support software function customization, etc.

Item	Description
Model	SW-C8
Chipset	MDM9X07(ASR1803)
Power supply	DC 12V/1A or Type-C 5V/2A
4G frequency band	LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B5/B8 Support Asian/EU/EC/EM/NA/JP/GL version, etc
Speed	LTE-FDD: Max 150 Mbps（DL）Max 50 Mbps（UL） LTE-TDD: Max 130 Mbps（DL）Max 35 Mbps（UL） WCDMA: Max 42 Mbps（DL）Max 5.76 Mbps（UL）
WiFi protocol	IEEE 802.11 B/G/N/AX
WiFi band	2.4G, Max 300Mbps
SIM card slot	Nano SIM*1(eSIM optional)
Max users	8-10 users
Ethernet port	1WAN/LAN10/100Mbps Adaptive network port
Reset	Long press for 5 seconds to restore factory settings
Indicator light	Wi-Fi1；Ethernet port1；4G Link*1
Operating temperature	-10℃~+45℃
Size	666312mm
