LTE Cat.4 MDM9X07 MiFi Board

Standard mifi board, high performance and stable, built in firmware
Online inquiry
  • Content details

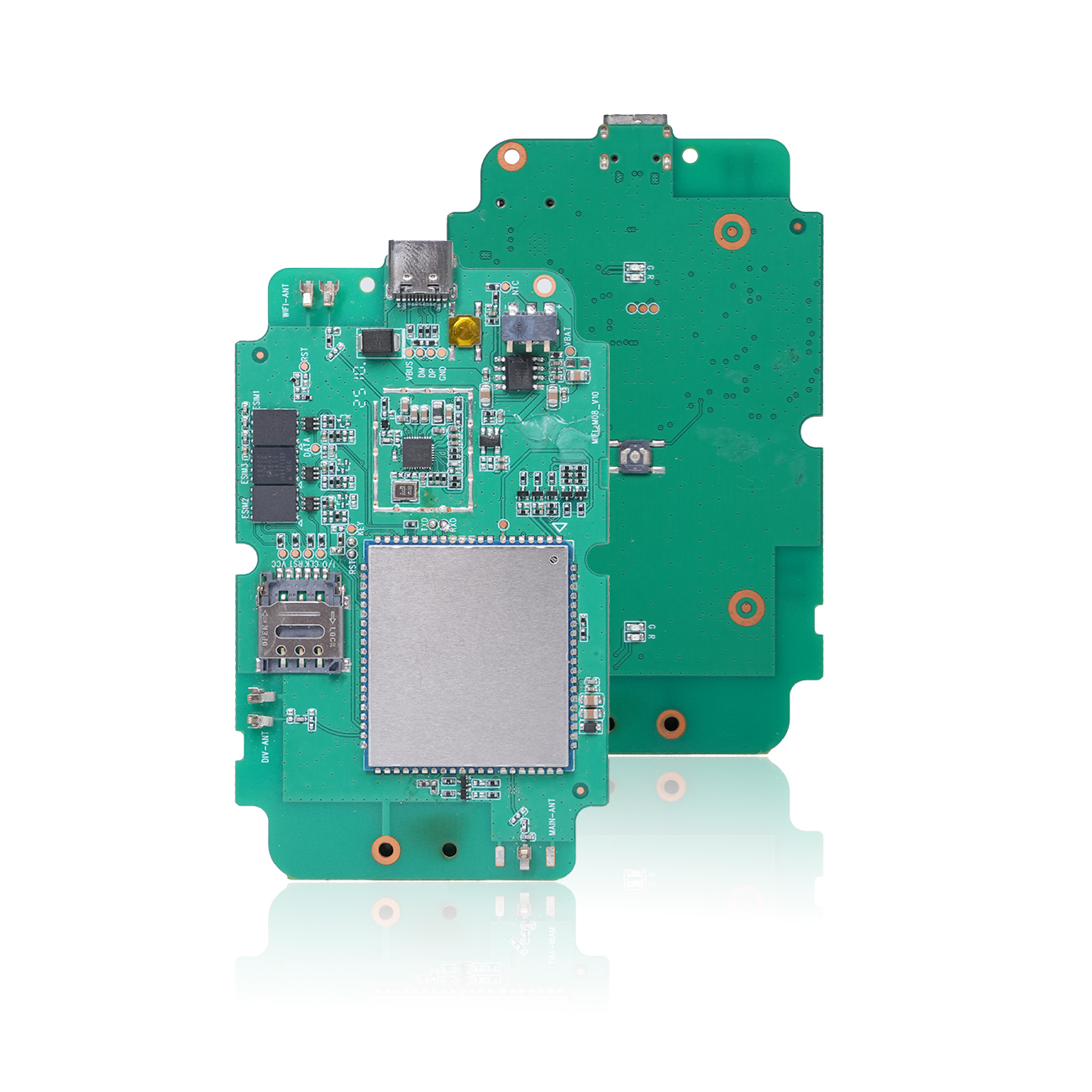

M08 LTE Cat.4 MiFi Board：


The MiFi motherboard integrates the LTE Cat.4 communication module and the WiFi6 chip, with built-in firmware, plug-and-play and no development required；


Support eSIM (3 pieces) or physical card slot optional, support battery-free charging, support USB Internet access, etc。


  Item  Description
  Model  SW-M08
  Chipset
  MDM9X07(ASR1803)
  Power supply  Type-C 5V/1A
  4G band

  LTE-FDD: B1/B3/B5/B7/B8/B20/B28

  LTE-TDD: B38/B40/B41

  WCDMA: B1/B5/B8

  Support Asian/EU/EC/EM/NA/JP/GL version, etc

  Speed

  LTE-FDD: Max 150 Mbps（DL）Max 50 Mbps（UL）

  LTE-TDD: Max 130 Mbps（DL）Max 35 Mbps（UL）

  WCDMA: Max 42 Mbps（DL）Max 5.76 Mbps（UL）

  WiFi Protocol  IEEE 802.11 B/G/N/AX
  WiFi band  2.4G, Max 300Mbps
  Max users  8-10 users
  SIM card slot

  eSIM*3 or Nano SIM*1（choose one）

  Reset
  Long press for 5 seconds to restore factory settings
  Indicator light  Power supply*1; Power*1; 4G Link*1
  Operating temperature  -10℃~+45℃
  Size  89*52*5mm
